ICON 2020-2022 Ford F250/F350, 2.5" Lift, Stage 6 Suspension System
overview
This ICON Vehicle Dynamics 2.5” suspension system is the best way to level your 4WD 2020-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. This Stage 5 System combines dual rate coil springs, alignment cams, CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, an adjustable track bar designed specifically for the 2017-2022 Super Duty, ICON's dual opposing 2.0 Aluminum Series steering stabilizer kit, and fabricated Radius Arm System for the ultimate in on-road comfort and off-road performance. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.
features & Benefits
- Fits 2020-2022 F-250 / F-350 4WD applications
- Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Approximately 25% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- ICON CDC Valve allows quick and easy end user compression adjustability
- Shocks are fully rebuildable and revalvable
download installation guide
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #115: Lift Heights Based On 4Wd Crew Cab Diesel
- TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.5" over stock
- TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock
- Ships in multiple boxes

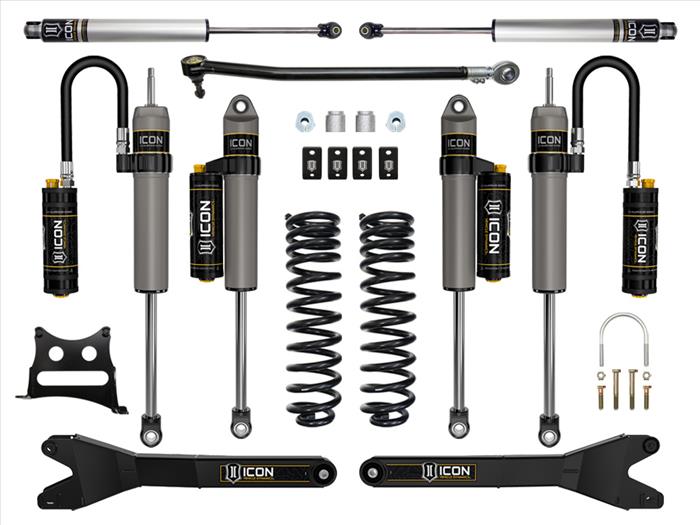

System Components:
- 62511 (QTY: 1) | 20-22 FORD F-250/F-350 FRONT 2.5” DIESEL DUAL RATE SPRING KIT
- 67800CP (QTY: 1) | 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
- 37705CP (QTY: 1) | 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
- 64038 (QTY: 1) | 17-23 FSD ADJ TRACKBAR KIT
- 64041 (QTY: 1) | 05-22 FSD RADIUS ARM SYSTEM
- 65000 (QTY: 1) | 05-22 FSD DUAL STABILIZER KIT
- 36511 (QTY: 2) | 99-23 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
- 64037 (QTY: 1) | 05-23 FSD 2" BUMP STOP SPACER KIT
